Features |
Supports the following
G-Codes: |
G00 G01 G02 G03 G10 G17 G18 G19 G20 G21
G40 G41 G42 G43 G49 G53 G54 G55 G56 G57 G80 G81 G90 G91 G92 G92.2 G93 G94 G98
G99 |
Runs under a Real
Time DOS Microkernel: |
There are six seperate tasks running at
the same time under a Real Time DOS Microkernel.
- G-Code interpreter with 150 move buffer.
- Motion control processes the buffer and
determines tool position based on feedrate and acceleration values.
- Sends Commanded position to stepper motor driver
with the highest priority.

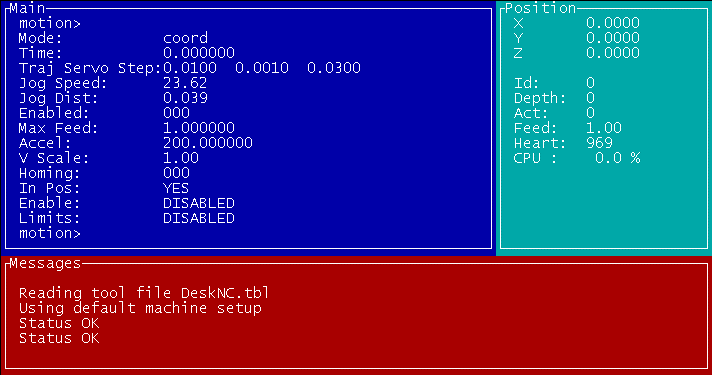

- Command level interface allows you to enter commands
or jog the table for corrections.
- Message manager is responsible for delivering
messages from the other tasks to the screen.
- Display position shows the current axis position and
following error 8 times per second.
|
Plus More! |
- Tool offsets with cutter compensation .
- Helical interpolation.
- Continuous Motion Contouring with a 150 move look
ahead buffer.
- Runs 'closed loop' using an inexpensive DRO Board
available from Camtronics.
|
